Features:
1. Fast speed and high efficiency
2. Small heat affected zone, small deformation
3. Different materials can be welded together
4. Can achieve micro tension control state
5. High product precision
6. High cross-section performance
7. Can produce non-standard products according to user specified standards
8. Suitable for light steel structure

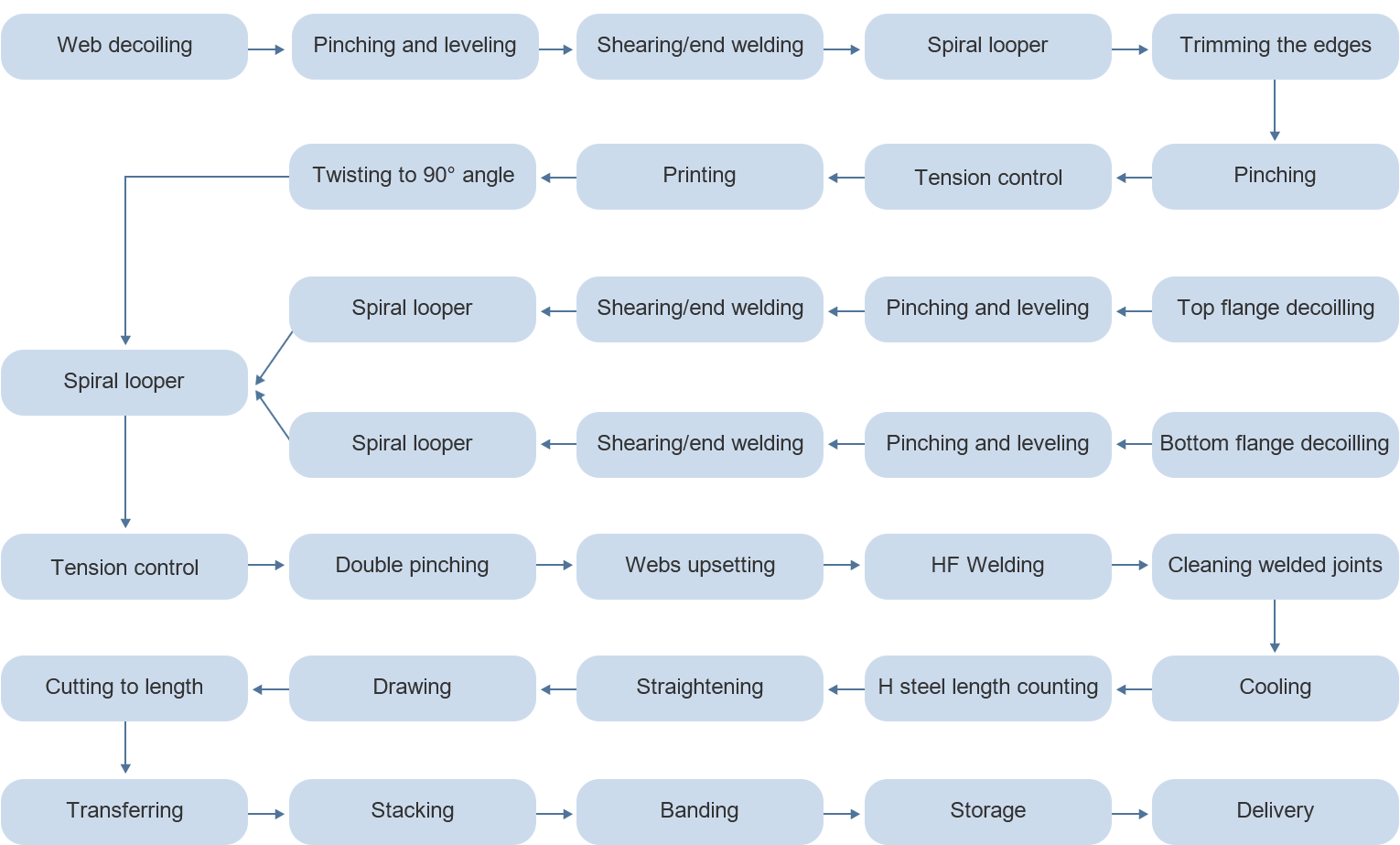

Panorama
Panorama
Loading part
H steel assembly machine
looping
Finished product
Item# | 1 | 2 | 3 | 4 | 5 |
Model | H100 | H250 | H500 | H600 | H800 |
H4” | H10” | H20” | H24” | H31.5” | |
Web Height/H mm(in) | 60-100 | 100-250 | 150-500 | 150-600 | 200-800 |
2.362”-4” | 4”-10” | 6”-20” | 6”-24” | 8”-31.5” | |
Flange Width/B mm(in) | 50-75 | 50-150 | 75-250 | 75-300 | 100-400 |
2”-3” | 2”-6” | 3”-10” | 3”-12” | 4”-16” | |
Web Thickness/W mm(in) | 2.0-3.0 | 2.5-4.5 | 3.0-6.0 | 3.0-10.0 | 3.0-12.0 |
0.079”-0.118” | 0.098”-0.177” | 0.118”-0.236” | 0.118”-0.394” | 0.118”-0.472” | |
Flange Thickness/if mm(in) | 2.3-4.0 | 3.0-6.0 | 3.0-9.0 | 4.0-14.0 | 4.5-16.0 |
0.091”-0.157” | 0.118”-0.236” | 0.118”-0.354” | 0.157”-0.551” | 0.177”-0.630” | |
Length m(ft) | 6-15 | 6-15 | 6-15 | 6-15 | 6-15 |
20-50 | 20-50 | 20-50 | 20-50 | 20-50 | |
Coil Weight t(ton) | 3 | 6 | 10 | 12 | 15 |
3 | 6 | 10 | 12 | 15 | |
Product speed m/min(ft/min) | 20-45 | 15-40 | 8-35 | 8-30 | 8-30 |
65-148 | 49-131 | 26-115 | 26-98 | 26-98 | |
Total Power Kw(hp) | 1200 | 1500 | 2800 | 3200 | 3600 |
1610 | 2011 | 3755 | 4291 | 4828 | |
Plant Area m(ft) | 120X16 | 150X18 | 180X24 | 180X24 | 180X24 |
394X52.5 | 492X59 | 590X79 | 590X79 | 590X79 |
We are engaged in the design, development and manufacture of straight seam welded pipe equipment, high-precision crossbar shear production line, spiral welded pipe equipment, high-frequency welding H-shaped steel equipment, cold-formed steel equipment, hot-dip galvanizing production line and roll.
